Dedicated Circuits for Heavy Tools and Workshop Power Solutions

If you are planning to convert a shed on your rural property into a fully operational workshop, paying close attention to the electrical configuration is essential. Using a MIG welder, air compressor, and table saw on the same circuit as your home can create major issues, including frequent circuit breaker trips, flickering lights, and dangerous overload conditions that threaten both safety and functionality.

This detailed guide outlines the critical aspects of wiring a dependable workshop in rural areas of the Mid North Coast. We will discuss the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machines. If your requirements are limited to basic power needs—like lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that demand substantial power for serious tasks.

Why Are Dedicated Circuits Essential for Your Workshop’s Power Supply?

Many households operate several power points on shared circuits, which is generally adequate for low-power appliances like kettles and televisions. issues arise when attempting to run a 32-amp MIG welder alongside an air compressor. Such scenarios can lead to serious complications if not handled correctly.

Consider the potential hazards of connecting heavy machinery to household circuits:

• Frequent circuit breaker trips — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker instantly or, worse, cause the wiring to overheat before the breaker can react.
• Voltage drops — Long cable runs from the main electrical board to the shed can result in voltage sag. This causes your tools to operate at elevated temperatures, perform less efficiently, and wear out prematurely.
• Power outages in the home — Your partner might discover that the kitchen power has been interrupted due to the compressor starting up, potentially leading to unwanted conversations.
• Increased fire hazards — Overloaded wiring within walls and cable runs frequently leads to electrical fires in rural areas.

Establishing dedicated circuits can effectively eliminate these challenges. Each heavy tool is allocated its own circuit, sized correctly for its load, complete with individual breaker protection. This setup ensures that no circuits are shared, thereby preventing overloads.

What Are the Power Requirements for Common Workshop Tools?

Before your electrician can create an effective circuit layout, it’s crucial to understand the power requirements of your tools. Here is a breakdown of the typical power consumption for common workshop equipment:

• MIG welder — Needs between 15A and 32A, depending on the model. Larger 240V welders usually operate at the higher end. Three-phase units will have different power specifications (more on that later).
• Air compressor — Consumes approximately 10A to 15A. The initial startup surge can be considerable, as compressor motors often draw three to four times their running current for a few seconds at startup.
• Table saw — Typically uses between 10A to 15A for a quality cabinet saw. More affordable contractor saws may use less power, but you are likely not seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these usually require between 10A and 15A, with metal lathes generally consuming at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

Adding up the power requirements reveals that a single 20-amp circuit from the house is insufficient. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when fully operational, underscoring the necessity for a comprehensive electrical plan.

How to Choose the Right Circuit Breaker Size and Implement RCD Protection

Every circuit in your workshop requires a breaker that corresponds to the cable size and the anticipated load. Your electrician will calculate this based on your equipment, but here are some general guidelines:

• 15A or 20A circuits — Best for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that demands significant power.
• Three-phase breakers — Should be sized according to the specific equipment requirements (more details below).

RCD protection is essential. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must feature RCD (safety switch) protection. This legal requirement is designed to guard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs swiftly cut power if there is a current leak to earth, protecting against serious injuries.

Typically, your electrician will use a mix of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functions. RCBOs are particularly advantageous in workshops because a fault in one circuit does not affect power to the others, enhancing the reliability of the electrical system.

Why Should You Install a Dedicated Sub-Board for Your Workshop’s Electrical Needs?

Instead of running several individual cables back to the main switchboard, setting up a dedicated sub-board in your workshop offers a more efficient solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This arrangement reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to travel back to the house to reset it, improving efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easy to incorporate new tools later on.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house’s electricity, an essential safety feature.

If your house switchboard is outdated or fully loaded, an upgrade may be required to support the workshop sub-board effectively. Older ceramic fuse boards likely cannot safely accommodate the increased load.

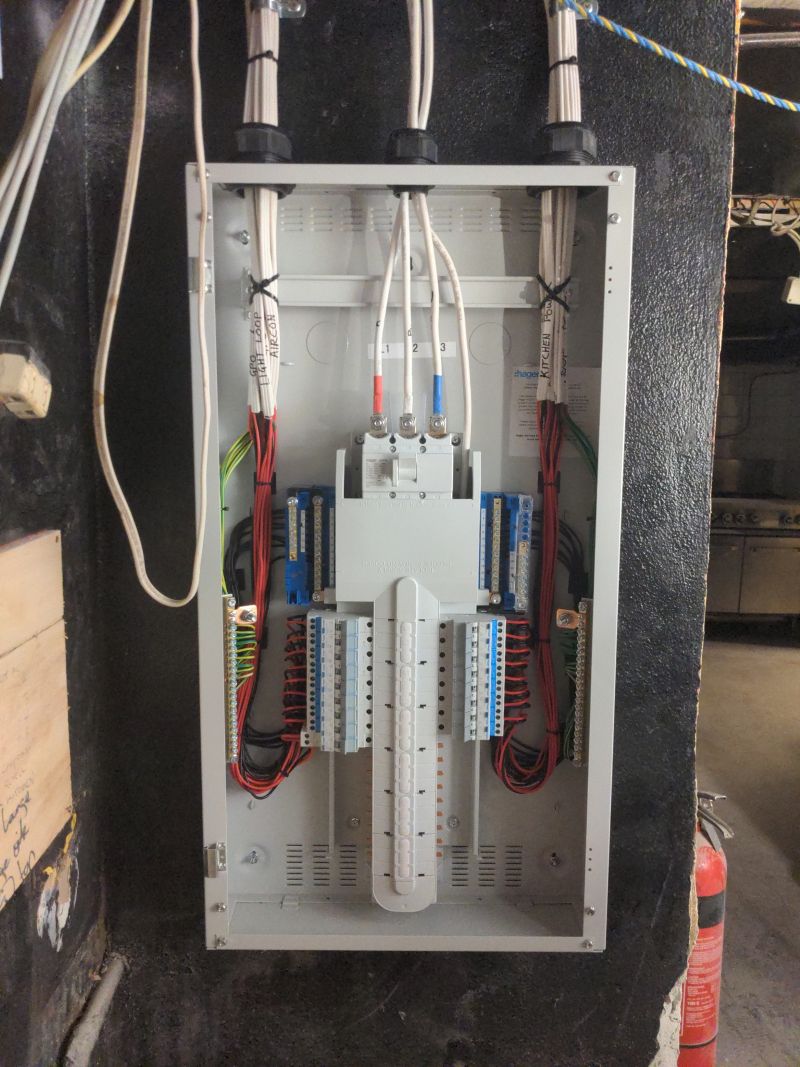

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

How to Create an Effective Lighting Plan for Your Workshop

Proper lighting is crucial for safety in your workshop. Clear visibility is essential, especially when handling sharp blades and hot materials. Here are some key lighting considerations:

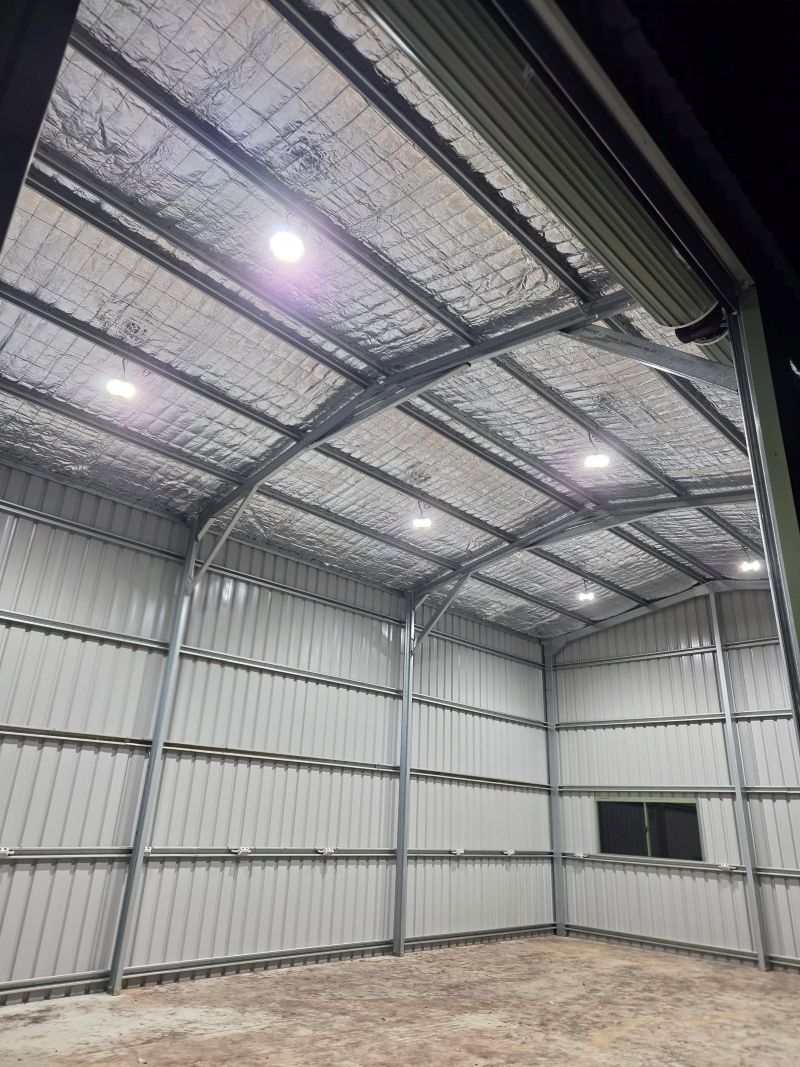

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become clogged with sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring illumination remains even if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience in designing lighting layouts for commercial settings. Our team can assist you in creating a workshop lighting plan that significantly improves your working environment while adhering to safety standards.

How to Plan for Efficient Ventilation and Dust Extraction Circuits

When engaging in woodworking or welding, adequate ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits for several important reasons:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may necessitate a 20A circuit based on motor specifications.

Maximise the Benefits of Three-Phase Power for Heavy Equipment

When involved in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may not suffice. Three-phase power provides several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges often associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and improving overall efficiency.

Access to three-phase power in rural areas on the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system for safety and compliance.

Protect Your Equipment with Surge Protection

Tools with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to shield against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Essential Features to Incorporate in Your Workshop Electrical Setup

Consider adding the following elements to your workshop wiring from the beginning:

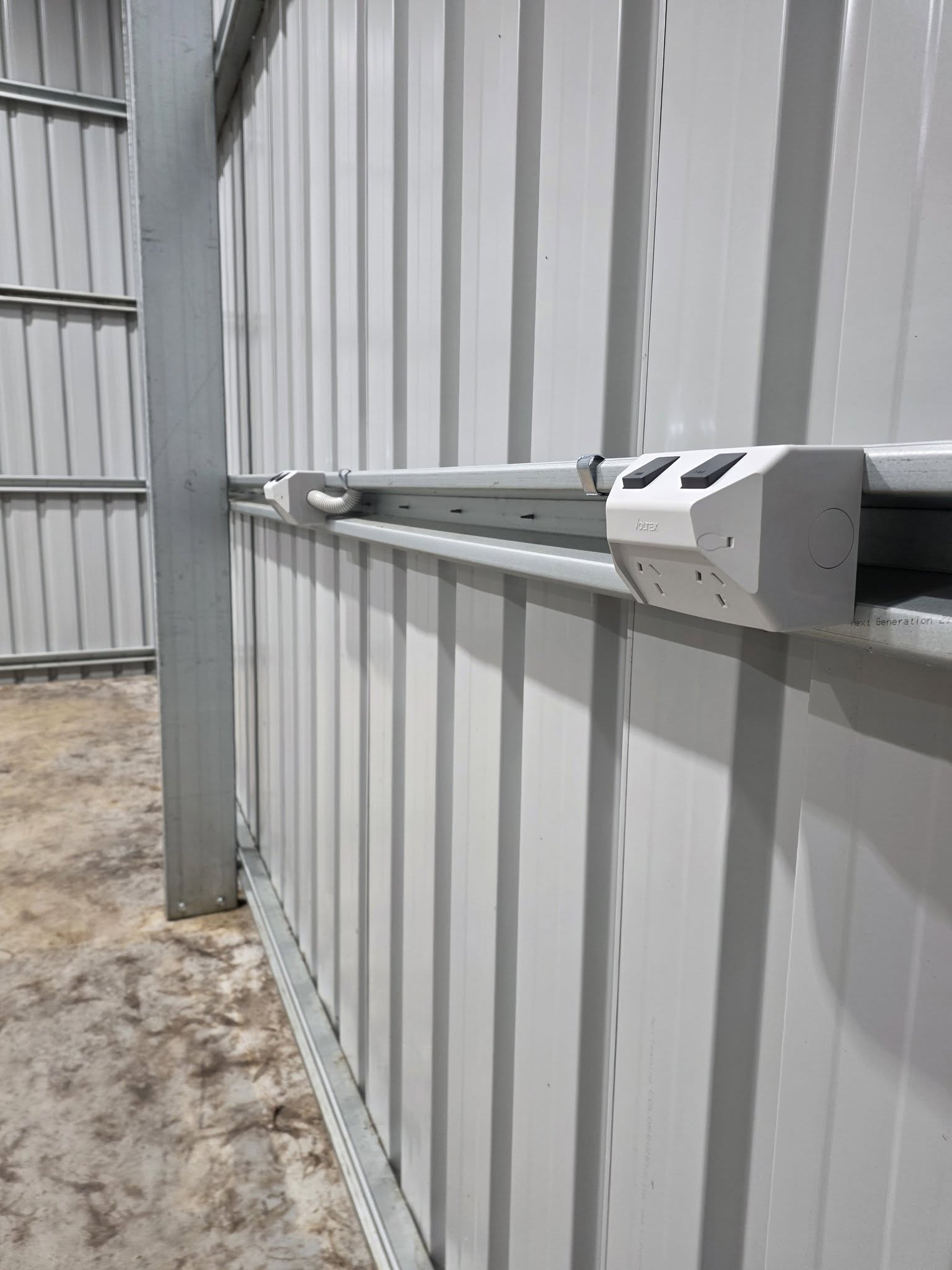

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets positioned conveniently near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring alongside the electrical setup. It is much easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas lacking adequate street lighting.
• EV or equipment charging — If you’re using electric equipment (such as battery-operated tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

What Are the Expected Costs for Your Workshop Electrical Setup?

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures serve as starting points. Complex layouts, extensive cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes tailored to your specific workshop and equipment requirements—no hidden fees involved.

Important Reminder: Engage Licensed Professionals for All Electrical Work

This is a crucial point to emphasise. In New South Wales, all electrical wiring work must be conducted by a licensed electrician. This encompasses the installation of new circuits, sub-boards, power points, and equipment connections. There is no DIY exemption for electrical work, even on your property, to ensure compliance and safety.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and services areas including Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and result in hefty fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it represents a risk that could have serious consequences.

Your Frequently Asked Questions Addressed

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker instantly or potentially cause the wiring to overheat if the breaker fails. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Necessary in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop typically necessitates a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), circuits for general power points, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Essential for a Home Workshop?

Not necessarily. Most home workshops operate efficiently on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Timeline for a Workshop Electrical Fit-Out?

A basic single-phase setup can generally be completed within 1 to 2 days. A full fit-out that includes multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
