Dedicated Circuits for Heavy Tool Workshop Applications

If you own a shed on a rural property and are contemplating converting it into a fully operational workshop, focusing on the electrical configuration is essential.
Utilising tools such as a MIG welder, air compressor, and table saw on the same circuit as your home can result in serious complications. These complications may include frequent circuit trips, flickering lights, and potentially hazardous overload conditions.

This detailed guide outlines the critical aspects of wiring a robust workshop in the rural areas of the Mid North Coast. We will delve into important subjects such as dedicated circuits, sub-boards, and the benefits of three-phase power for larger machinery. If your requirements are limited to basic power for your shed, like lighting and a few outlets, please refer to our guide on Shed Wiring on Acreage for a more suitable introduction. This article specifically focuses on workshops that demand substantial power.

Recognise the Significance of Dedicated Circuits for Your Workshop

In most residential settings, multiple power points operate on shared circuits, which works well for low-power devices like kettles and televisions. complications arise when attempting to run a 32-amp MIG welder alongside an Air compressor at the same time. This scenario can lead to serious electrical issues.

Consider the following potential issues when connecting heavy machinery to household circuits:

• Frequent circuit trips — A welder drawing over 30 amps on a 20-amp circuit may trip the breaker immediately or, worse, cause the wiring to overheat before the breaker has a chance to react.
• Voltage drops — Long cable runs from the main board to the shed can lead to voltage sag. This may cause your tools to operate at elevated temperatures, reduced speeds, and wear out more quickly over time.
• Power failures in the house — Your partner might find themselves in the dark in the kitchen simply because you turned on the compressor. This often leads to unwanted conversations.
• Heightened fire risks — Overloaded wiring within walls and cable runs frequently causes electrical fires in rural areas.

Installing dedicated circuits effectively addresses these problems. Each heavy tool should have its own circuit, correctly sized for its load, along with individual breaker protection. This ensures that no circuits are shared, preventing overload situations.

Evaluate the Power Consumption of Common Workshop Tools

Before your electrician can devise an effective circuit layout, it’s vital to understand the power requirements of your equipment. Here’s a detailed overview of standard power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically fall at the higher end. Three-phase units have different specifications (more on that later).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw three to four times their running current for a few seconds during start-up.
• Table saw — Usually consumes 10A to 15A for a quality cabinet saw. Cheaper contractor saws may require less power, but you should aim for a quality option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually falling on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It should run continuously while using other tools, so it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also requires a dedicated circuit.

When you add up the power draw, it becomes clear that a single 20-amp circuit from the house will be inadequate. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the necessity for strategic planning.

Select the Correct Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop must have a breaker that matches the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Required for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific equipment requirements (details below).

RCD protection is crucial. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement aims to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs instantly cut power if a current leak to earth occurs, which can differentiate between a minor shock and a serious injury.

Typically, your electrician will utilise a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functions. RCBOs are especially advantageous in workshops because a fault on one circuit does not disrupt power to others, improving safety and reliability.

Install a Dedicated Sub-Board to Fulfil Your Workshop’s Electrical Needs

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration minimises voltage drop and reduces cable expenses.
• Streamlined fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t need to return to the house to reset it, saving time and effort.
• Future expansion — A correctly sized sub-board allows for additional circuits in the future, making it simple to add new tools as your workshop evolves.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house’s electricity, enhancing safety during maintenance.

If your house switchboard is outdated or at full capacity, you may need an upgrade before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely accommodate the increased load.

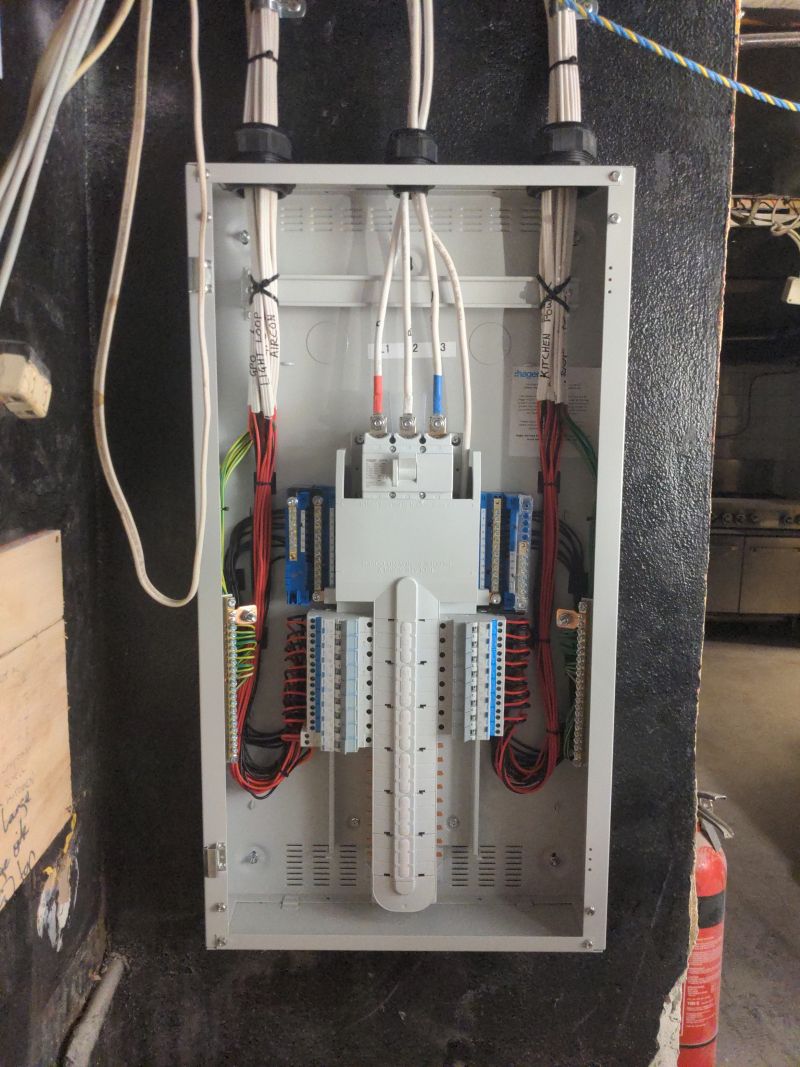

A standard workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions, ensuring optimal performance and safety.

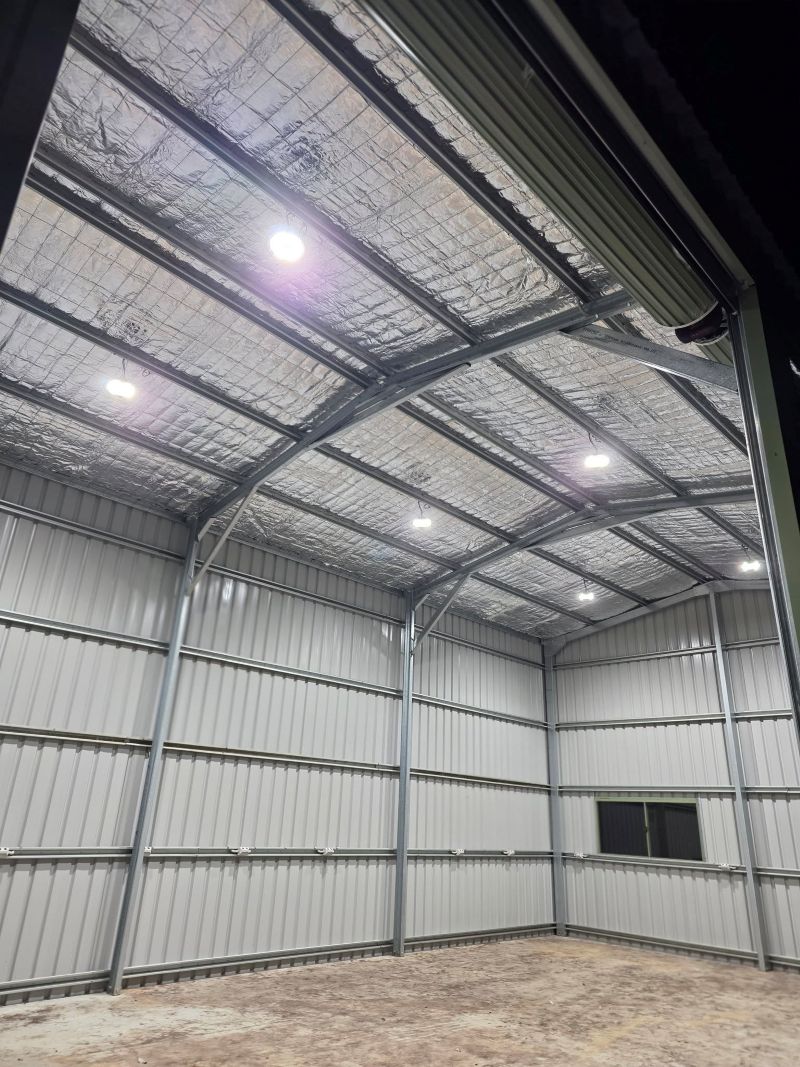

Ensure Proper Lighting in Your Workshop for Safety and Productivity

Sufficient lighting is essential for safety in your workshop. You need to clearly see your work, particularly around sharp blades and hot materials. Here are some crucial lighting factors to consider:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to guarantee visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Choose IP-rated fittings that resist dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in creating a workshop lighting plan that significantly improves your working environment and safety.

Implement Effective Ventilation and Dust Extraction Systems

When engaging in activities such as woodworking or welding, ensuring proper ventilation is just as important as having adequate power. Dust extraction systems and exhaust fans require their dedicated circuits due to the following reasons:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, similar to compressors, which necessitate dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are turned on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If using a cyclone-style dust collection system, it might need a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Harness Three-Phase Power for Optimal Operation of Heavy Equipment

When performing intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may become inadequate. Three-phase power provides several advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power for optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and machinery.

Accessing three-phase power in rural areas on the Mid North Coast depends on availability at the street level. Some properties already have a three-phase supply, while others may require a phase converter or a new connection from Essential Energy.
For further information, please refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will need the installation of a three-phase switchboard with suitably rated breakers and an effective earthing system to ensure safety and reliability.

Integrate Surge Protection to Safeguard Your Equipment

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are vulnerable to voltage spikes. Notably, your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your valuable equipment is at risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, thus protecting your investment.

If your property is prone to storms (which is common on the Mid North Coast), we recommend adding surge protection at the main switchboard to shield against lightning-induced surges that could damage your equipment.

For properties that depend on a generator for backup power, including a generator changeover switch ensures seamless transitions between mains power and generator supply without the risk of back-feeding or damaging connected equipment, providing peace of mind during power outages.

Explore Additional Features for Your Workshop Fit-Out

Here are several more elements to consider incorporating into your workshop wiring from the outset:

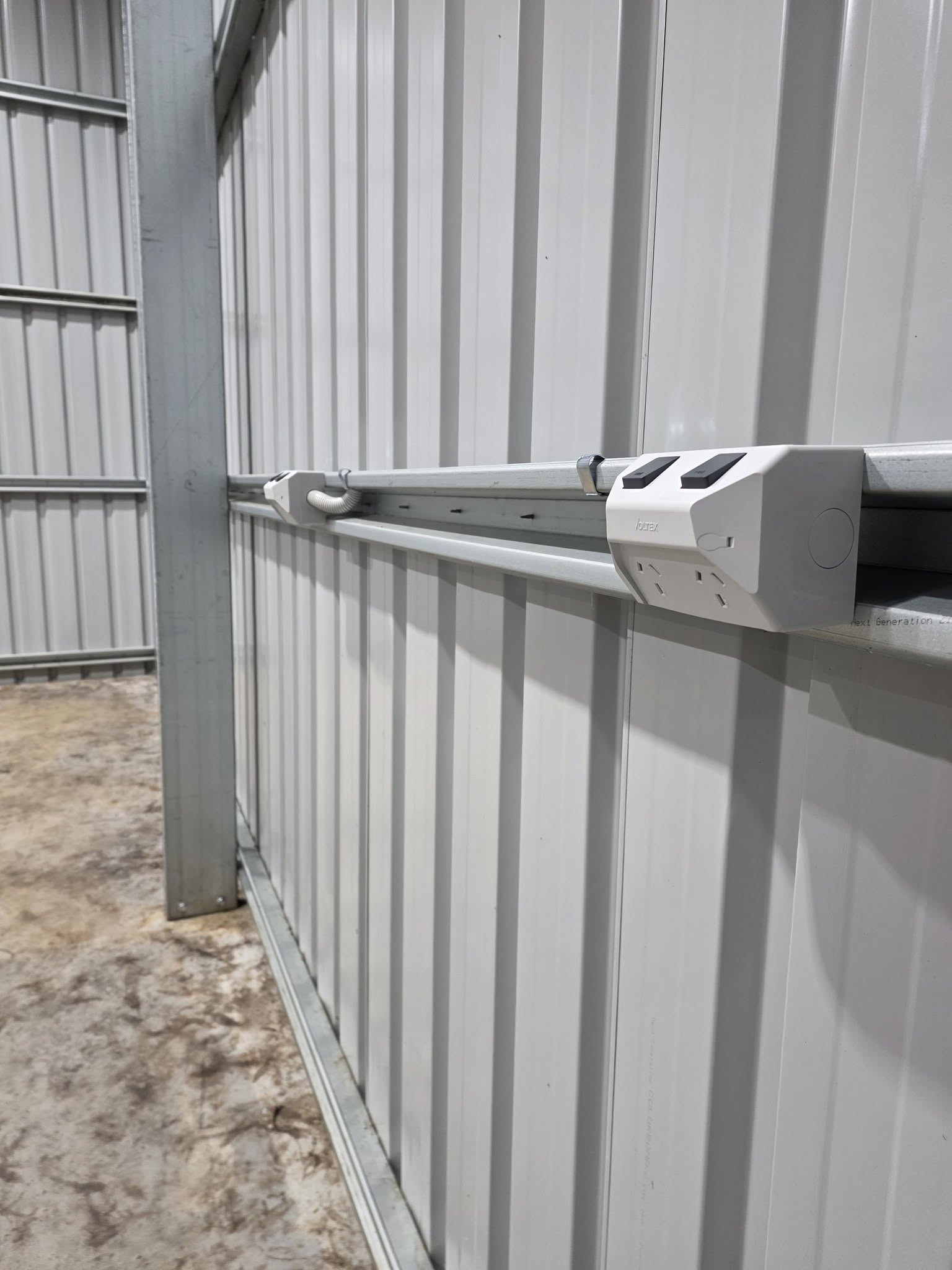

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided to ensure durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring alongside the electrical setup. It is much simpler to run cables during the initial fit-out than after the walls are finished, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If using electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Assess the Cost of Your Workshop Electrical Fit-Out

Cost estimates will vary based on workshop size, the number of circuits needed, and whether three-phase power is required. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing essential electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring sufficient capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, catering to extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point. In New South Wales, all electrical wiring work must be done by a licensed electrician. This includes installing new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, delivering quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to perform the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious consequences.

Answers to Your Frequently Asked Questions Regarding Workshop Electrical Needs

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to about 140A output) can be used with a standard 10A or 15A power point. Any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld frequently, it’s essential to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Should I Typically Have in a Workshop?

The number of circuits needed depends on your tools. A well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future expansion. We tailor the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Required for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only essential if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will evaluate this during the quoting process to ensure all is compliant.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can generally be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency

If you are establishing a workshop on your property and want to ensure it is done correctly from the outset, contact us. We will visit your site, assess your space and equipment list, and develop a plan that meets your power requirements without compromising safety or quality, ensuring a successful workshop setup.

Contact Hack-It Electrical Solutions at 0402 079 803 or reach out to us online to arrange a detailed quote and consultation.

We are your local electricians in Bellingen, proudly serving the entire Mid North Coast from Nambucca Heads to Woolgoolga and up to Dorrigo.
