Restoring Quarry Tile Floors for Improved Light and Airflow

How do quarry tiles compare to other flooring options?

Understanding the Importance of the Clay Body

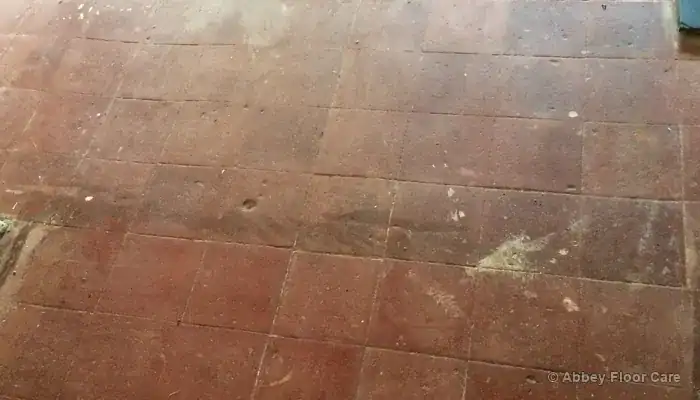

Quarry tiles are crafted from dense, unglazed clay that undergoes high-temperature firing, resulting in a robust moisture-active surface without a protective glaze. Unlike ceramic or porcelain tiles, quarry tiles are unglazed, making them susceptible to damage from foot traffic, cleaning agents, and moisture from the outset. This ongoing cycle of moisture absorption and release is central to their functionality.

The clay structure consists of fine mineral particles with voids that facilitate moisture vapour movement. This enables water vapour from the subfloor to rise through the tile and evaporate at the surface. In many historic UK homes, quarry tiles are installed directly on lime or compacted earth bases, often without a damp-proof membrane, allowing for continuous moisture movement. Applying a sealant disrupts this natural function instead of protecting it.

The Significance of the Firing Process

The firing temperature of quarry tiles influences their final density, colour, and porosity. Tiles fired at lower temperatures yield softer, more porous materials that readily absorb liquids, commonly seen in older Victorian and Edwardian homes. Conversely, those fired at higher temperatures result in denser structures with tighter voids, offering better resistance to liquid absorption while remaining unglazed and moisture-active. Both types differ fundamentally from glazed or polished flooring options.

This production technique ensures that the colour of quarry tiles is an inherent characteristic, extending throughout the clay body rather than merely coating the surface. The colour cannot be scrubbed away like a painted finish. Over time, the surface texture may alter due to wear, leading to colour variations as contaminants accumulate within the tile. A floor that consistently appears dark likely harbours ingrained contamination rather than revealing its original clay colour.

The Consequences of Lacking a Glaze

Glazed tiles feature a glass-like coating that repels liquids, resists stains, and simplifies cleaning by keeping dirt on the surface. Quarry tiles, however, lack this protective layer; their open clay surface allows liquids to penetrate directly. Grease, cleaning residues, soil, and water seep into the tile body instead of remaining on top. Over time, these substances accumulate beneath the surface, rendering standard surface cleaning ineffective.

This explains why the common cleaning method — applying a product, mopping, and rinsing — consistently results in poor outcomes on quarry tiles. Cleaning agents only address the surface residues while deeper layers of contamination persist. A floor that has been cleaned regularly for years can still retain decades’ worth of ingrained contamination since conventional cleaning solutions do not penetrate deeply enough to eliminate it. Recognising the need for professional deep cleaning is essential for the effective maintenance of these floors.

This quarry tile resource offers detailed information on the entire lifecycle of these floors, from quarry tile fundamentals to cleaning, restoration, and sealing procedures for various conditions.

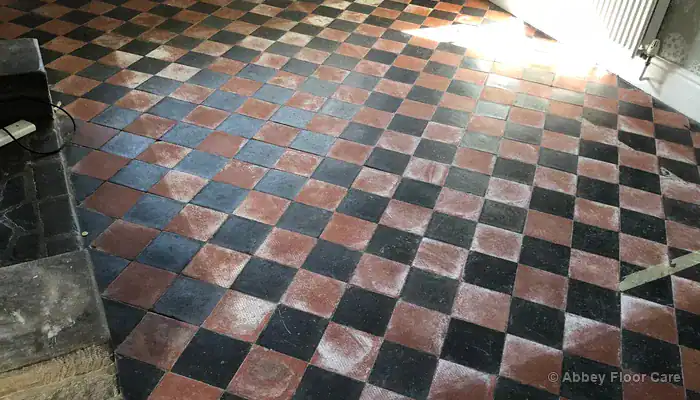

The Role of Moisture Vapour Transmission and the Risks of Blocking It

Moisture vapour transmission refers to the continuous movement of water vapour through the subfloor, tile, and into the living space. In a well-functioning quarry tile floor, this process occurs invisibly without causing damage. The floor breathes effectively, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When moisture transmission is obstructed, often due to a film-forming sealer that blocks the tile’s pores, moisture accumulates beneath the surface. This build-up can cause blistering, peeling, or discolouration. Salts deposited from trapped moisture create white crystalline deposits known as efflorescence. Additional cleaning attempts cannot resolve this issue; the core problem lies in the obstructed breathability, necessitating the removal of the coating to restore the tile’s moisture movement.

Identifying Embedded Contamination and Its Concealed Accumulation

Embedded contamination consists of grease, soil, organic matter, and residues that have permeated the clay body over years of use. Unlike recent spills, this contamination often remains invisible on the surface. It presents itself as overall darkening, persistent dullness, or a floor that never seems clean despite cleaning efforts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Every meal prepared, every muddy shoe, and every application of general cleaning product contributes to a layer of residue absorbed by the tile. Over a decade or two, this results in a layer of contamination that cannot be removed by surface cleaning products. Addressing it requires specialised chemistry that penetrates into the clay body, typically achieved through controlled alkaline cleaning with wet vacuum extraction, directly targeting the contamination instead of merely treating the surface.

What causes the floor to look dirty after cleaning?

If your quarry tile floor looks dirty after mopping, it’s likely because the contamination has infiltrated the clay body itself. This situation arises when traditional cleaning methods fail to yield visible results, and continuing to use the same techniques will not change the outcome. The floor isn’t unresponsive due to irreparability; it’s unresponsive because the cleaning efforts target the wrong layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may look cleaner right after mopping, but it soon returns to its dull state within hours as the surface dries and the underlying layer re-emerges. This cycle can persist for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively targets the embedded layer rather than repeatedly treating the surface, leading to immediate and lasting improvements.

Why do quarry tiles show different appearances in various homes?

Repetitive cleaning that fails to yield visible results does not imply a technique failure; it indicates that soil has already penetrated below the surface layer. To diagnose this issue, it is essential to understand why two quarry tile floors in similar conditions can display significantly different appearances. Variations in manufacturing greatly influence both the aesthetics and performance of the tiles.

Quarry tiles fired at higher temperatures produce denser materials with tighter clay structures. These tiles absorb liquids more slowly, maintain their colour under foot traffic more consistently, and resist surface abrasion better over time. In contrast, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and show signs of embedded contamination sooner. Both types remain unglazed and moisture-active, but the speed at which problems arise differs considerably.

Why does dirt seep into the tile instead of staying on top?

Capillary action draws grease and soil into a quarry tile rather than allowing them to sit on the surface. The open clay structure facilitates the inward movement of liquid contamination under normal foot traffic. Each step applies pressure that forces liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all enter the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disrupts surface contamination but fails to reach the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue involves using properly formulated pH-neutral cleaning solutions, avoiding detergents that leave behind their own residues, and removing grit before wet mopping to reduce surface abrasion and contamination problems.

Why do common cleaning products lose effectiveness over time?

If your regular floor cleaner was effective for the first year or two but now seems to lack impact, it’s likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are designed to address residues at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once contamination is embedded, these products only maintain surface cleanliness without resolving the underlying issues.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs alongside the soil they aim to eliminate. This accelerates the residue cycling process and can create a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry required to penetrate the clay body, rather than merely the surface, utilises controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can using the wrong sealer damage your floor?

Applying a film-forming sealer on a moisture-active quarry tile floor does not provide protection; instead, it traps the moisture that the floor must release. Film-forming products create a physical barrier across the tile’s pores. While they may be suitable for modern glazed tiles, this approach is detrimental for unglazed quarry tiles resting on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Effectively sealing a quarry tile floor involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may appear effective. Within months, moisture vapour accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, exacerbating the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission necessitates professional intervention. An impregnating sealer, which penetrates the tile body rather than resting on top, allows moisture to move while protecting the internal structure from further contamination.

What indicators reveal that quarry tile floors are in decline?

White powder on the tile surface, inconsistent finishes that return after cleaning, and coatings that peel without clear explanation are interconnected symptoms of the same underlying issue. Each indicates a specific stage of deterioration, and recognising these signs is crucial for understanding the floor’s condition.

Efflorescence, the white crystalline or powdery deposit that forms when moisture carries dissolved salts to the surface, indicates active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be recognised through peeling, mottling, or uneven sheen, signalling areas where the coating has separated from the tile.

What maintenance is vital for the longevity of a quarry tile floor?

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most crucial factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — steering clear of general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Selecting the wrong product can reactivate the residue cycling process from the outset.

Equally important is removing grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface abrasion in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains internal protection without causing surface residue accumulation.

When does maintenance fall short of meeting your floor’s needs?

Persistent darkening that does not improve with proper cleaning products, white salts that return soon after removal, and coatings that repeatedly fail indicate that the floor requires professional evaluation rather than ongoing maintenance.

Use the following sequence to assess your floor’s current condition:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry thoroughly. If the darkening returns within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or exhibit an uneven sheen in high-traffic areas, the product was likely incompatible with the floor’s moisture movement profile, necessitating professional removal before further treatment.

What actions should you take based on your floor’s condition?

Every issue with quarry tiles points to a specific aspect of the restoration system, and the appropriate starting point depends on the current condition of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor displays white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
