Ducted and Split Air Conditioning in Tarragindi Installs

Precision Electrical & Air has successfully executed a detailed air conditioning installation at a residential property in Tarragindi, incorporating two distinct systems. This project featured the installation of a Daikin ducted air conditioning system for the upper level, alongside a Daikin high-wall split system in the living room on the lower level.

Expert Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

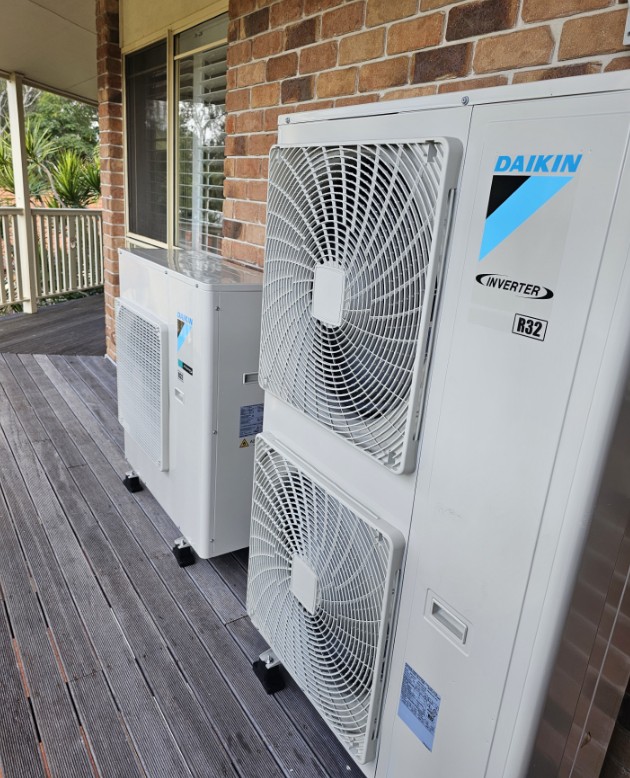

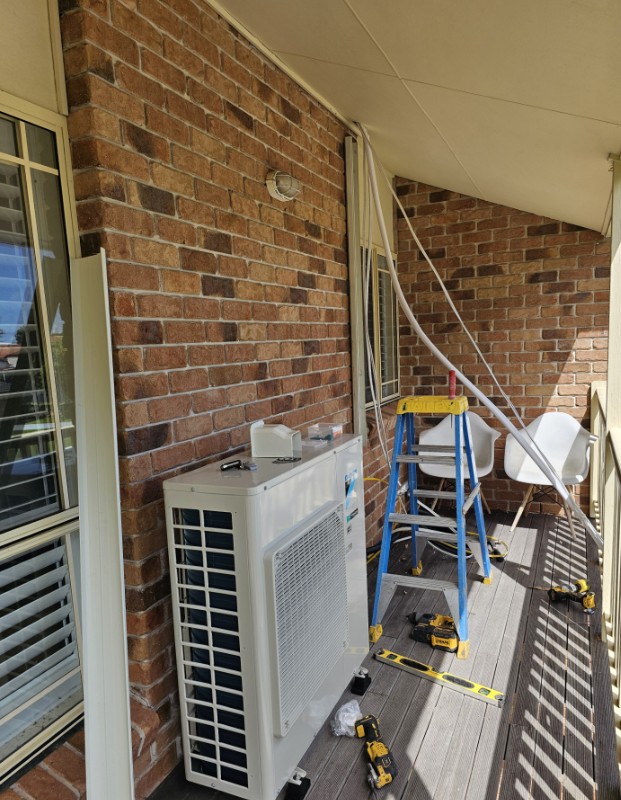

The skilled team at Precision Electrical & Air oversaw the installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically installed within the ceiling space, while the condenser was mounted securely on the front balcony wall, using rubber feet to reduce vibrations. Ducting efficiently enclosed the connection between the indoor and outdoor units, facilitating a seamless exit from the ceiling space.

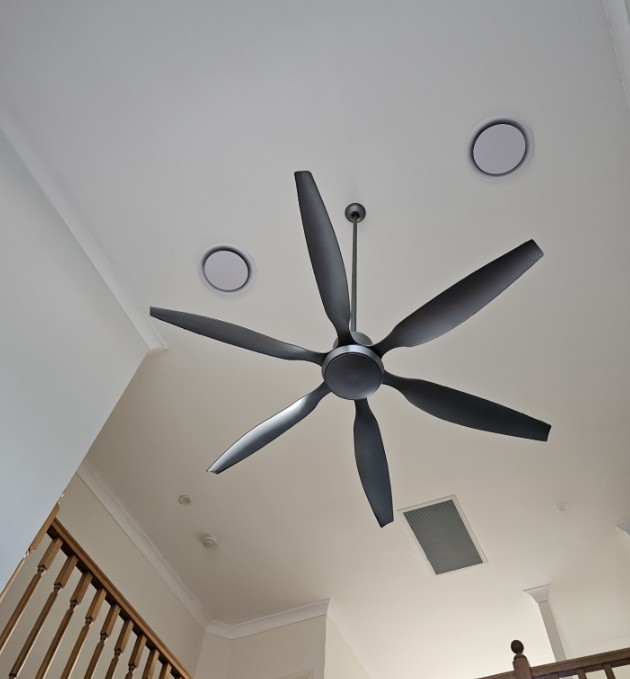

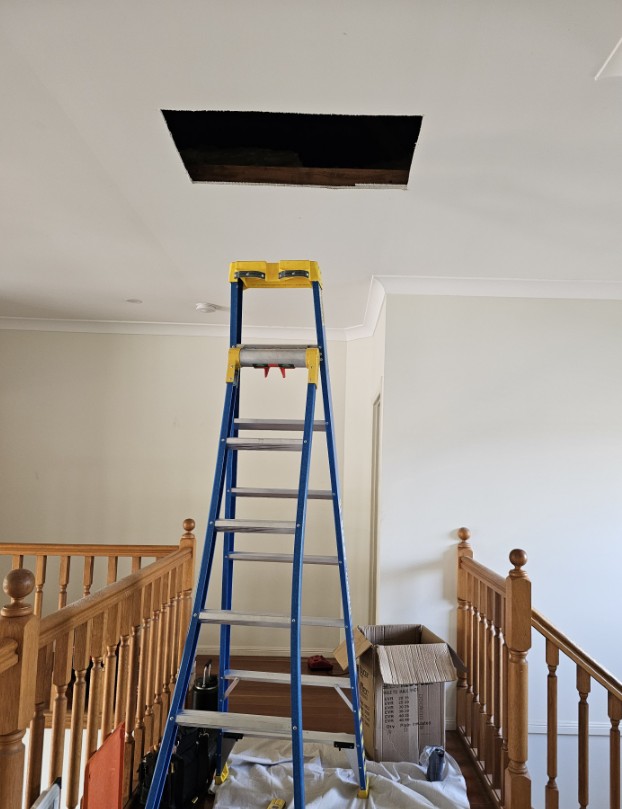

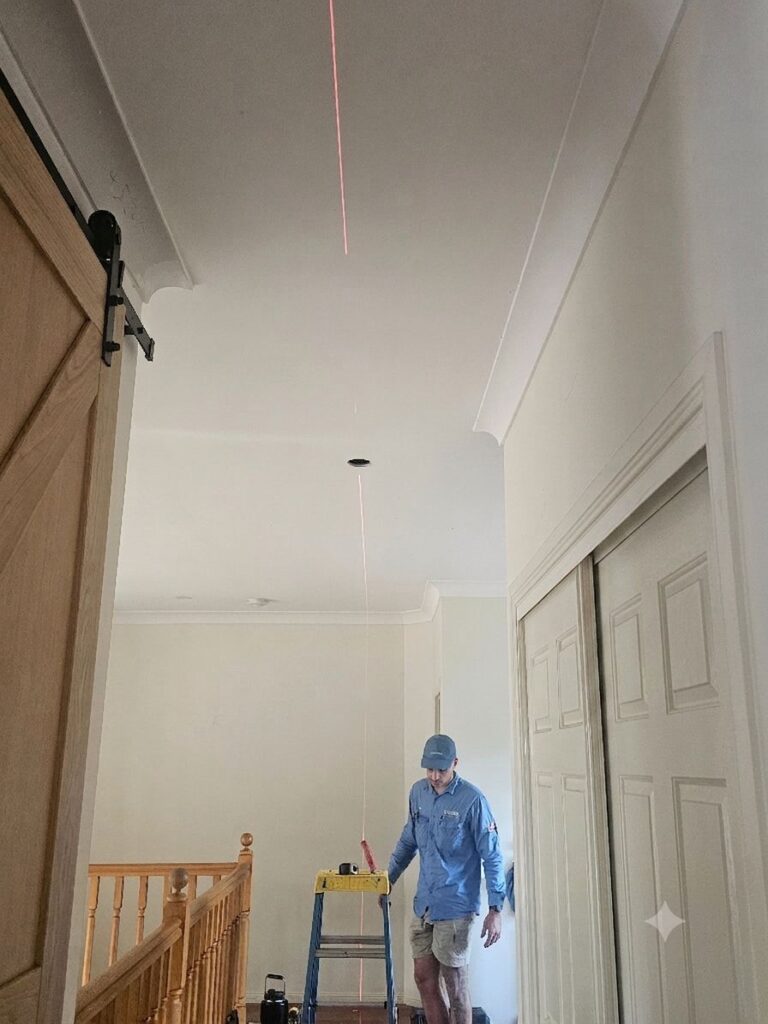

To guarantee effective drainage, two drainage systems were set up, channeling water from the indoor unit and its safety tray to the external gutter. The installation included extensive ducting, branch take-offs, zone motors, and air plenums throughout the ceiling space, all connecting back to the indoor unit. A return air grille was thoughtfully positioned in the upstairs hallway, enhancing air circulation and overall system efficiency.

A dedicated electrical sub-circuit was established, running from the switchboard to the outdoor unit, equipped with an NHP isolation switch located next to the condenser. A MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, providing residents with greater control over their air conditioning system and its various zones.

Effortless Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

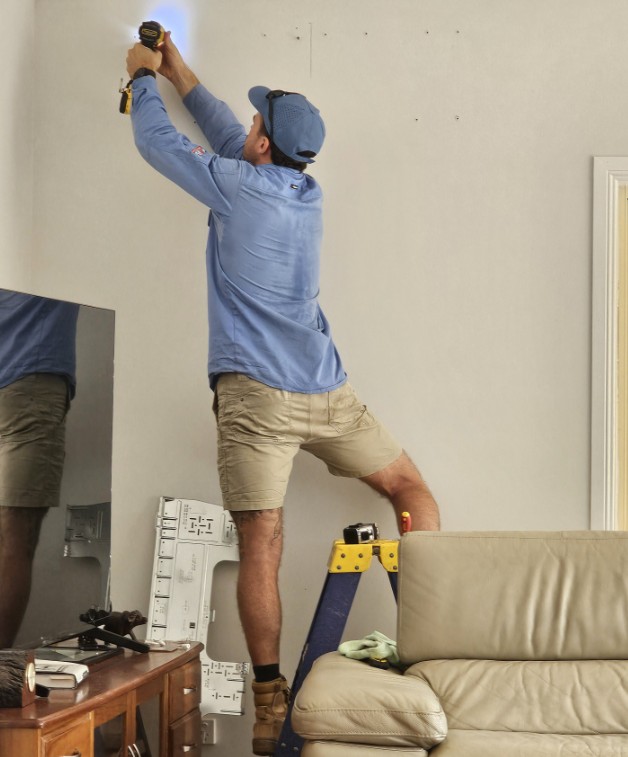

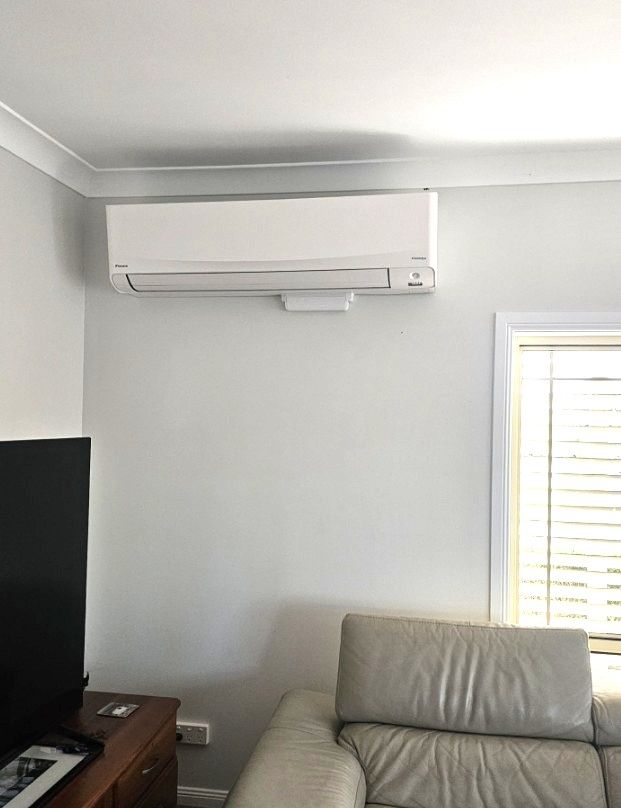

In the downstairs living area, the installation of the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was executed flawlessly. This involved fitting new ducting, interconnect cables, and copper pair coil necessary for connecting the indoor and outdoor units, with the condenser mounted on rubber feet to further mitigate vibrations.

A dedicated electrical circuit was created from the switchboard to the condenser, complete with an NHP isolation switch to enhance safety. To effectively manage condensation, an Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and linked to the nearest stormwater downpipe. The entire system underwent thorough commissioning to ensure peak performance.

Overview of Installation Achievements

This installation delivers the property efficient zoned ducted heating and cooling for the upper level, complemented by a dedicated high-wall split system for the downstairs living area. Both Daikin systems were installed in strict adherence to manufacturer specifications, ensuring that all electrical circuits and drainage systems were properly configured and fully operational.

For expert ducted or split system air conditioning installation in Tarragindi or the nearby suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
